- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -40
- Approvals
- ATEX, BV, CCC, CE, cFM, cFMus, DNV GL, EAC Ex, IECEx, INMETRO, KCC, KOSHA, KR, LR, UKCA
- Connection technology signal
- Cage clamp terminal, Screw terminal

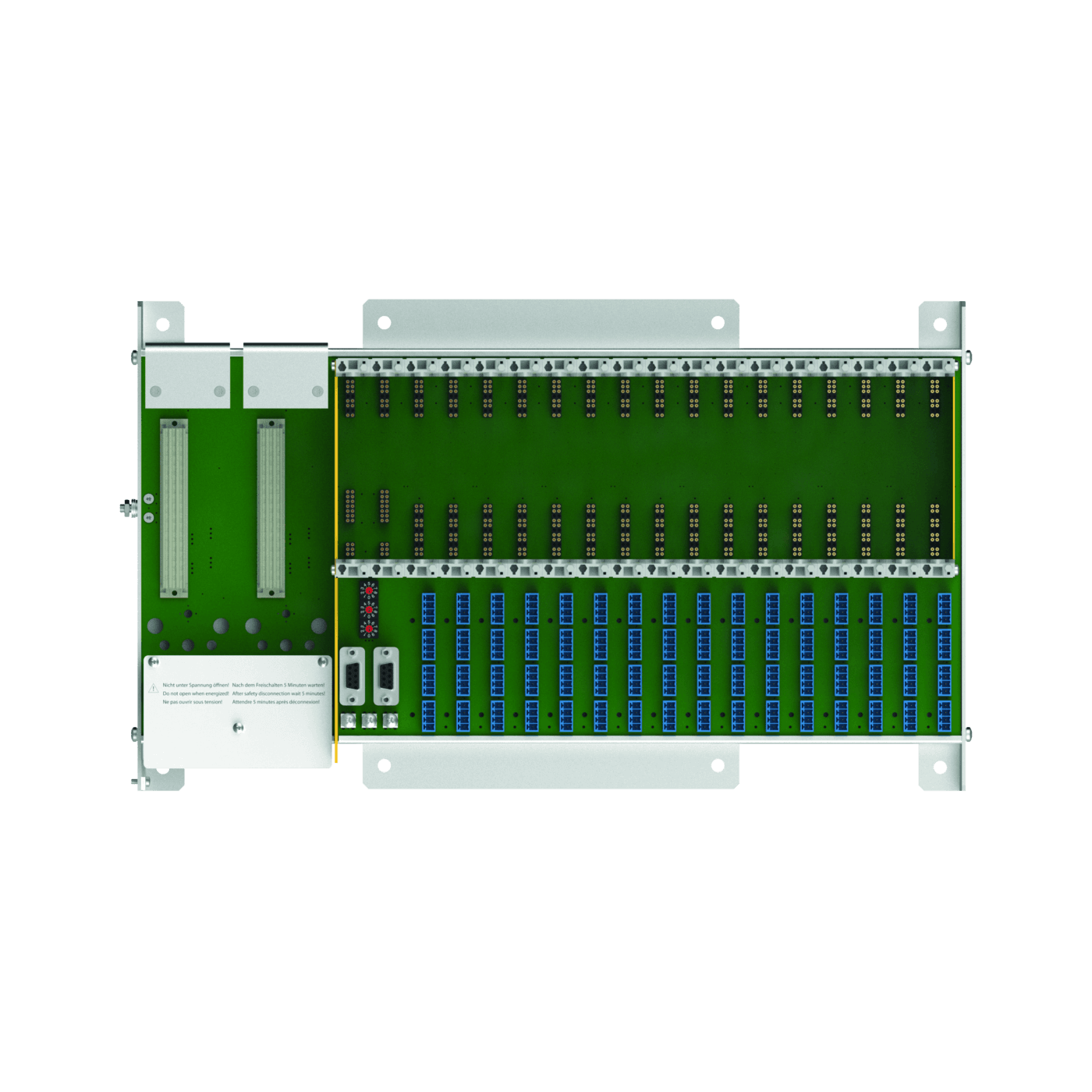

- Device type
- Module Racks

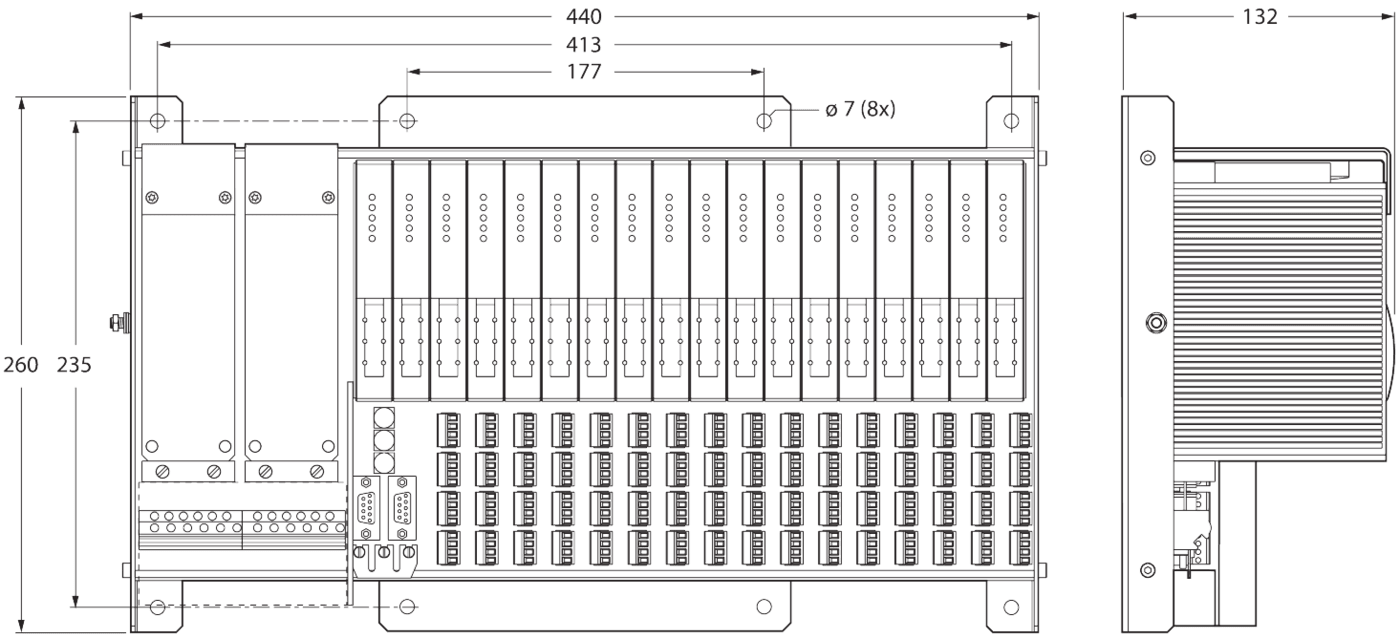

- Dimensions
- 260 mm x 440 mm x 130 mm
- Electrical connection
- 4 x 4 clamps per module
- Fieldbus connection technology
- 2 x D-SUB, 9-pin
- Housing material
- Aluminium, extrusion profile
- Network protocol
- EtherNet/IP, Modbus TCP, PROFIBUS-DP, PROFINET
- Protection class
- IP20
