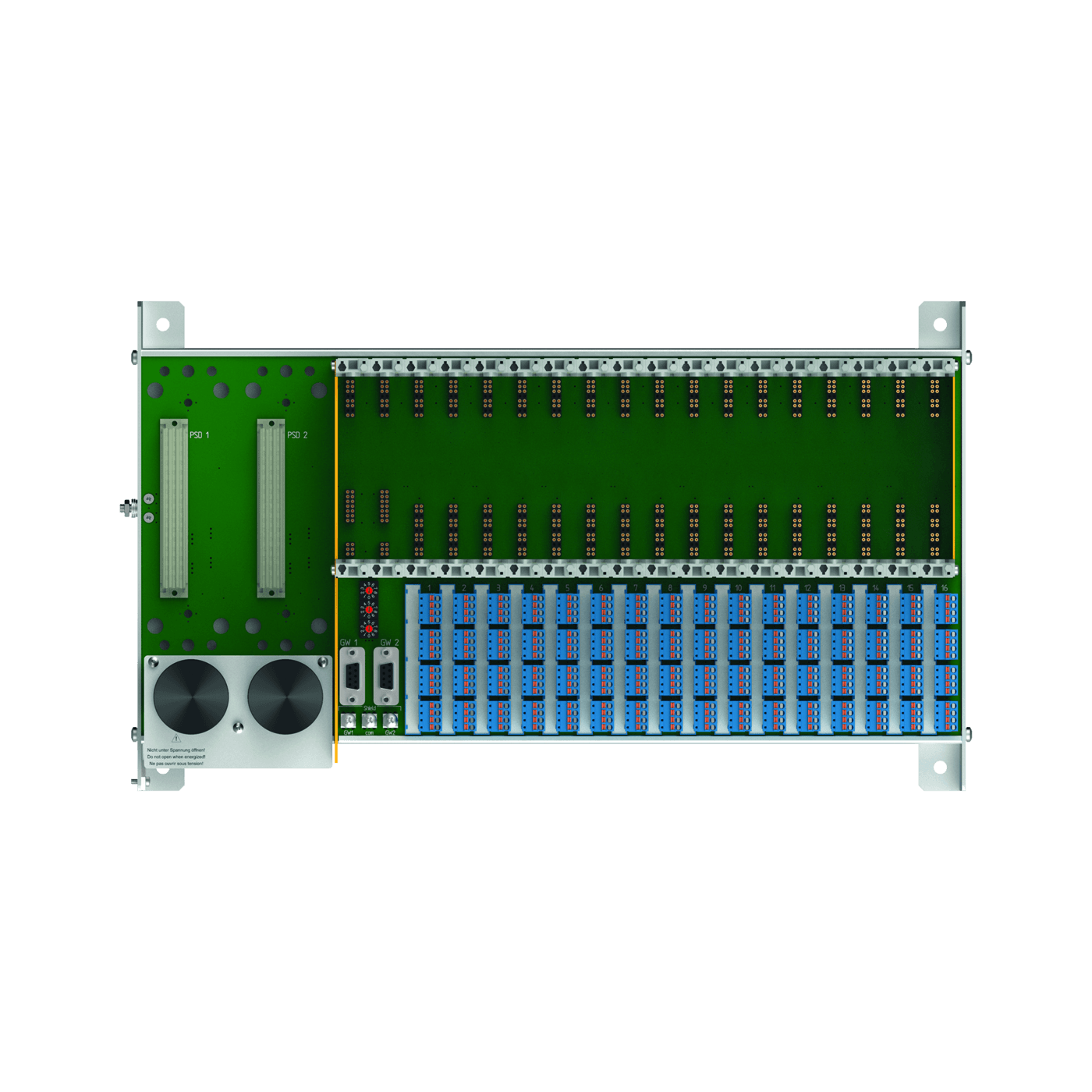

excom I/O System Module Rack, Zone 1, for 16 Modules
MT16-2G
Order ID no. 9100687
In Stock
Group
D1
List Price
14 795,00 kr
home
Turck-Shop
Fieldbus Technology
I/O Systems
MT16-2G
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Approvals
ATEX, CCC, CE, cFM, cFMus, EAC Ex, IECEx, INMETRO, KOSHA, UKCA
Connection technology signal
Cage clamp terminal, Screw terminal
Device type
Module Racks

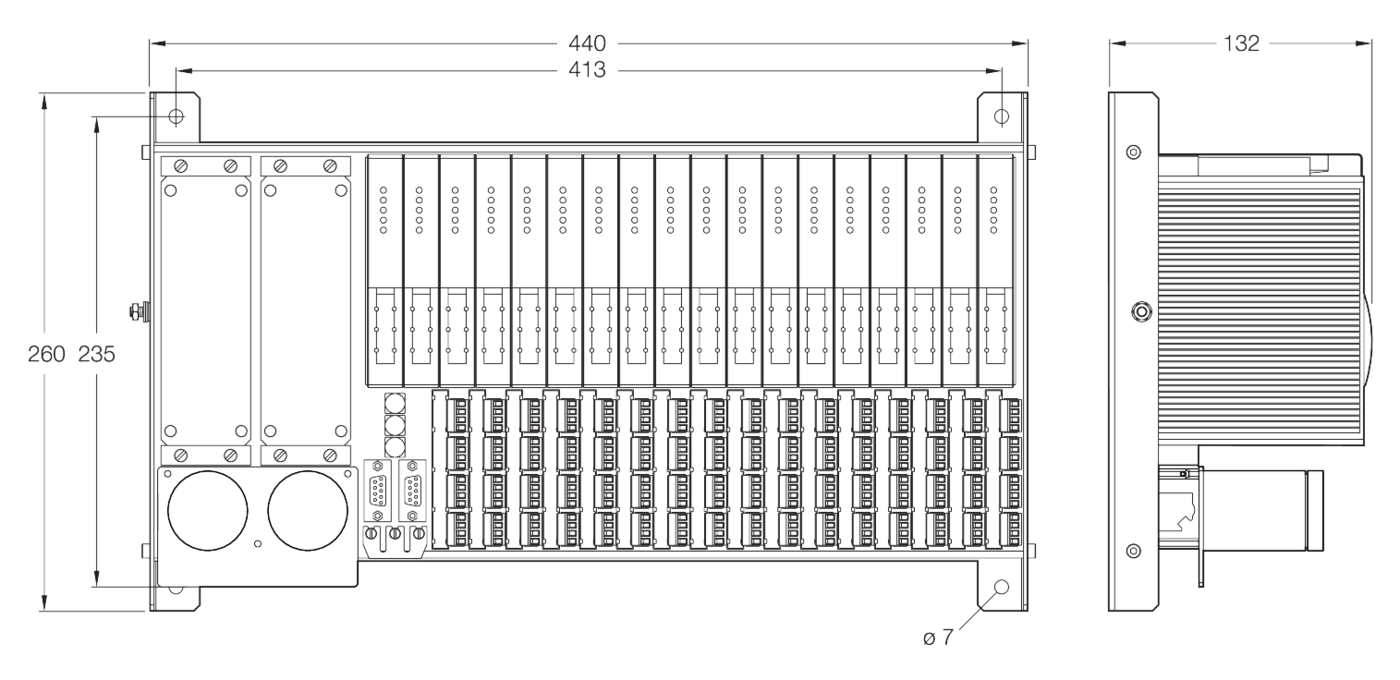

Dimensions
260 mm x 440 mm x 130 mm
Electrical connection
4 x 4 clamps per module
Fieldbus connection technology
2 x D-SUB, 9-pin
Housing material
Aluminium, extrusion profile
Network protocol
EtherNet/IP, Modbus TCP, PROFIBUS-DP, PROFINET
Protection class
IP20
Key Features
Connection technology signal
Screw terminal, Cage clamp terminal
Network protocol
PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET
Protection class
IP20
