piconet stand-alone module for DeviceNet 1-channel SSI Sensor Interface
SDNB-10S-0005
Order ID no. 6824098
In Stock
Group
D1
List Price
6 672,00 kr
Item Total
6 672,00 kr
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Fieldbus Technology
I/O Modules
SDNB-10S-0005
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Approvals
cULus
Connection technology signal
M23
Device type
Compact station, I/O Module

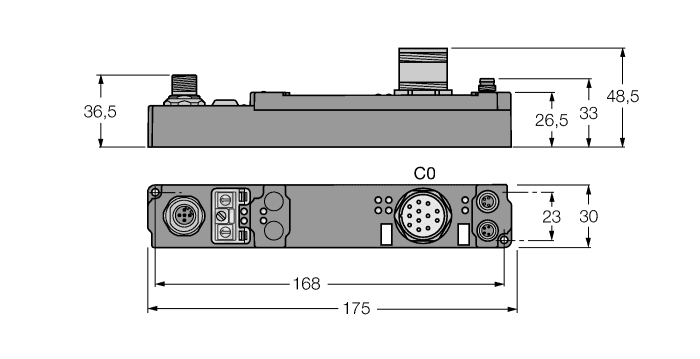

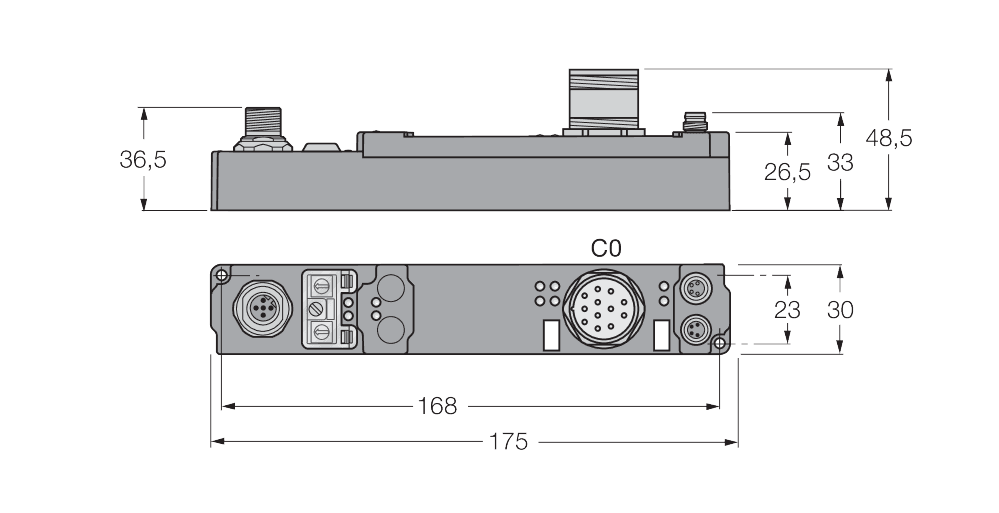

Dimensions
175 mm x 30 mm x 26,5 mm
Fieldbus connection technology
1 x M12
Fieldbus transmission rate
125/250/500 kbps
Network protocol
DeviceNet
Number of channels
1
Operating voltage
DC
Protection class
IP67
Signal type
SSI
Voltage supply connection
2 x M8
Key Features
Connection technology signal
M23
Network protocol
DeviceNet
Protection class
IP67
Signal type
SSI
