SDPB-10S-0001 | TURCK - Your Global Automation Partner
piconet stand-alone module for PROFIBUS-DP 1-channel Incremental Encoder Interface
SDPB-10S-0001
Order ID no. 6824074
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Approvals
cULus
Connection technology signal
M12, M23
Device type
Compact station, I/O Module

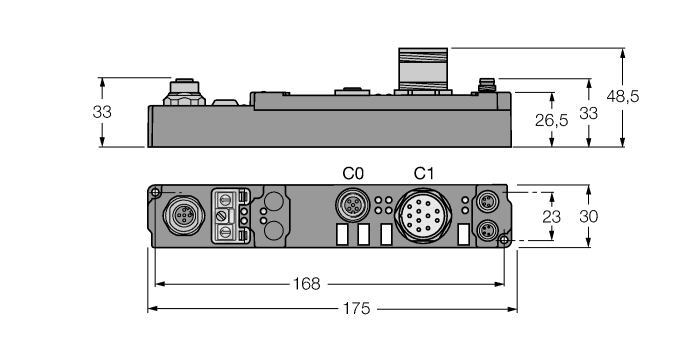

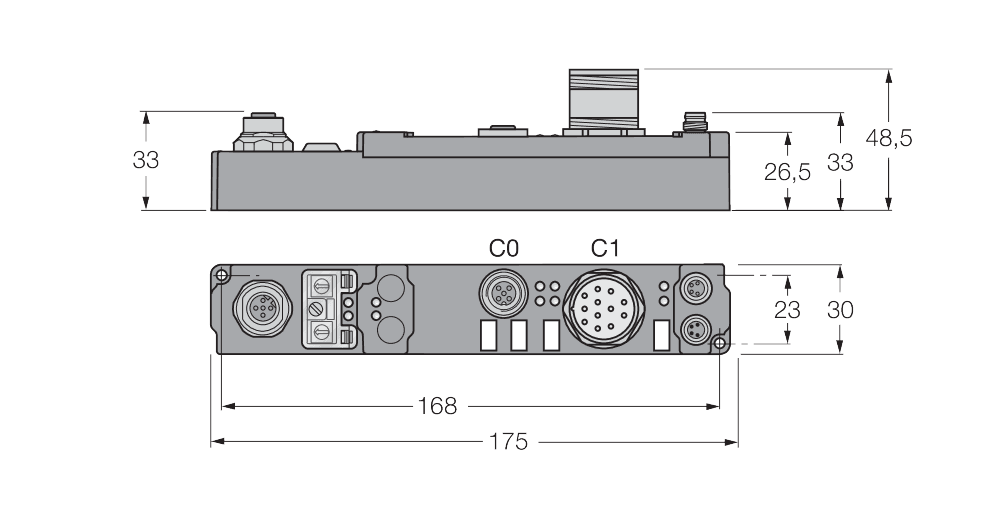

Dimensions
175 mm x 30 mm x 26,5 mm
Fieldbus connection technology
1 x M12
Fieldbus transmission rate
9.6 kbps …12 Mbps
Network protocol
PROFIBUS-DP
Number of channels
1
Operating voltage
DC
Protection class
IP67
Voltage supply connection
2 x M8
Key Features
Connection technology signal
M12, M23
Network protocol
PROFIBUS-DP
Protection class
IP67
In Stock
Group
D1
List Price
6 948,00 kr
