I/O Hub for Connecting Digital Signals to IO-Link Master 16 Universal Digital Channels, PNP
TBIL-M1-16DXP
Order ID no. 6814102
In Stock
home
Turck-Shop
Fieldbus Technology
I/O Modules
TBIL-M1-16DXP
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Approvals
ATEX Zone 2/22, CCC, cULus, IECEx
Connection technology signal
M12
Device type
Compact station, I/O hub, I/O Module

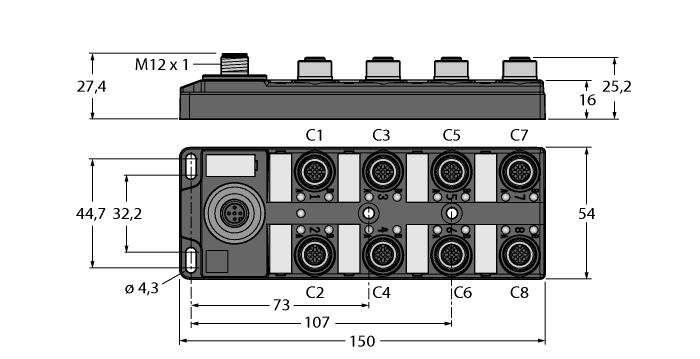

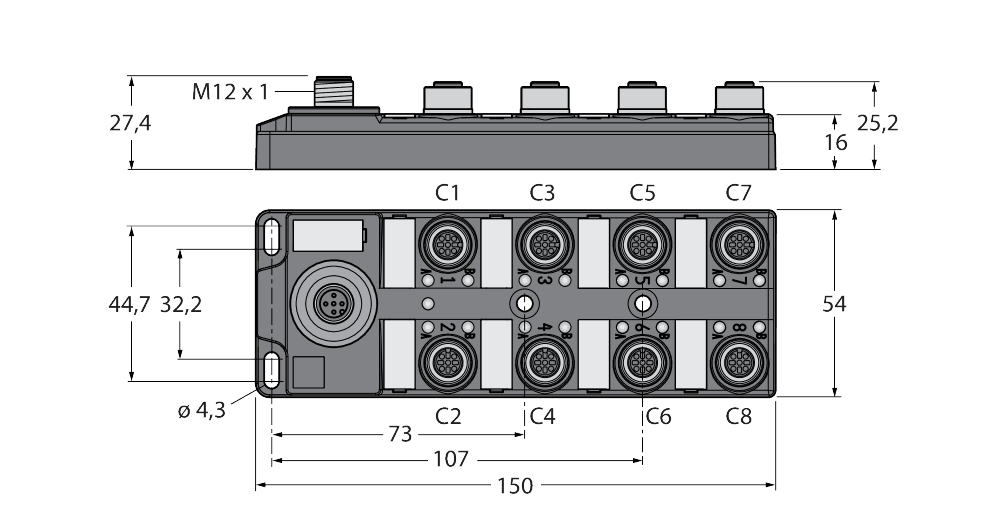

Dimensions
150 mm x 54 mm x 27,4 mm
Installation area
zone 2, zone 22
Network protocol
IO-Link
Number of channels
16
Operating voltage
DC
Output voltage
24 VDC from supply voltage
Protection class
IP67, IP69K
Signal type
Digital input, Digital input/output, Digital output
Voltage supply connection
M12
Key Features
Connection technology signal
M12
Network protocol
IO-Link
Protection class
IP67, IP69K
Signal type
Digital output, Digital input, Digital input/output
Group
D1
List Price
2 149,00 kr
Item Total
2 149,00 kr
