Industrial Ethernet

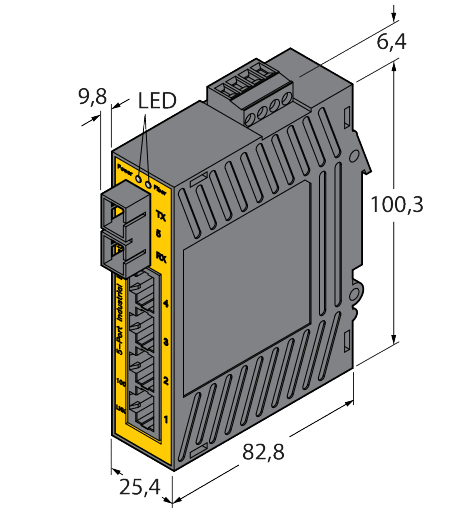

SE20-84XT-RJ422-FO

Order ID no. U3-10873

Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -40
Connection technology Ethernet: 4 x RJ45, 1 x Duplex SC
Device type: Ethernet switch
Dimensions: 25,4 mm x 82,8 mm x 101,6 mm
Fieldbus connection technology: 4 x RJ45 sockets; 1 x Duplex SC fiber socket
Function: Unmanaged
Number of Ethernet ports: 4 ports + 1 multi-mode fiber
Protection class: IP20
Transmission rate Ethernet: 10/100 Mbps
Voltage supply connection: Pluggable screw terminal strip
