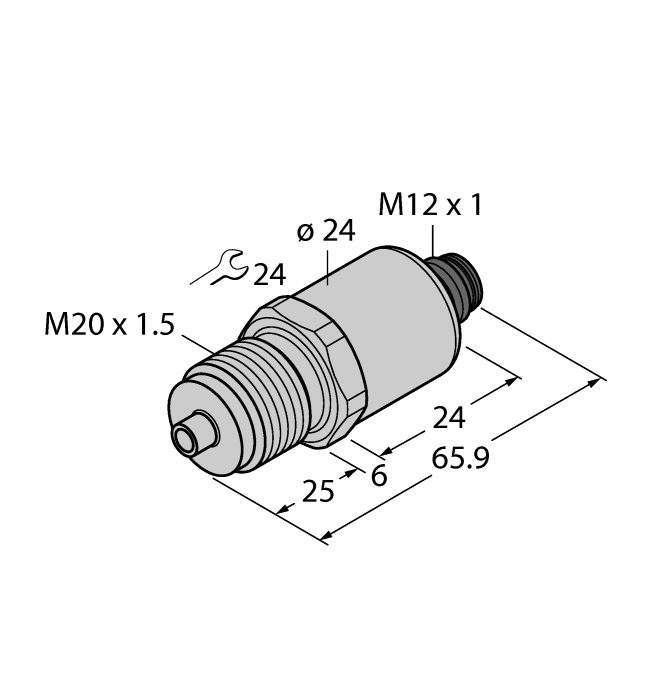

Pressure Transmitter

PT16R-1020-IX-H1143

Order ID no. 100022558

Protection class: IP67
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 85
Design: Without display
Electrical connection: Connector
Operating voltage: DC
Output function: Analog output current
Housing material: Stainless-steel/Plastic
Connector type: M12 × 1
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Approvals: cULus
Process connection: M20 × 1.5 male thread, front sealing and manometer (combi)
Media temperature min. (°C): -30
Media temperature max. (°C): 120
Pressure type: Relative pressure
Electrical output: Current output (2-wire)
Material pressure transducer: Ceramic Al₂O₃
Pressure range: 0…16 bar

Electrical output: Current output (2-wire)
Process connection: M20 × 1.5 male thread, front sealing and manometer (combi)
Pressure range: 0…16 bar
