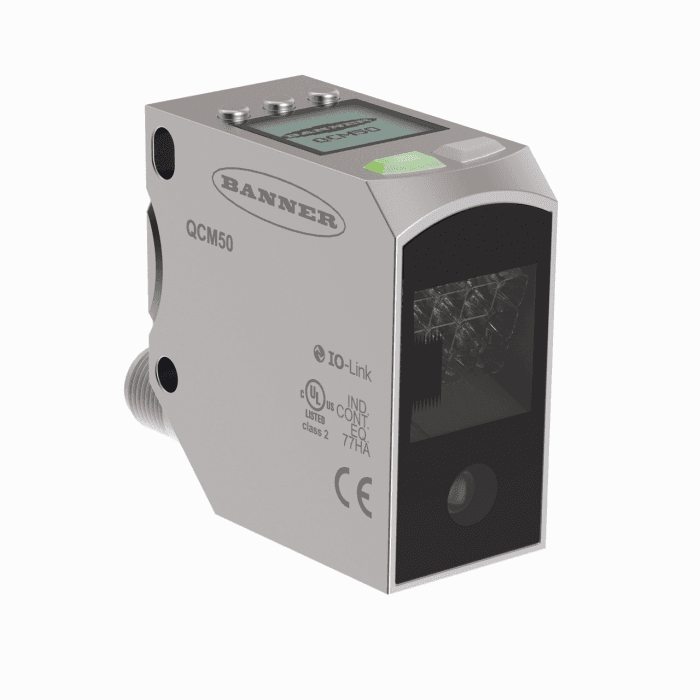

Photoelectric Sensor
QCM50-K5D60-Q8-8
Order ID no. 3806613
home
Home
Loading...
Technical Data
Protection class
IP67, IP69K
Switching element function
NO contact
Output function
PNP/NPN
Approvals
CE, cULus
Design
Rectangular
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Die-cast zinc
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
55
Max. range (mm)
150
Function
Inspection sensor
Light type
White

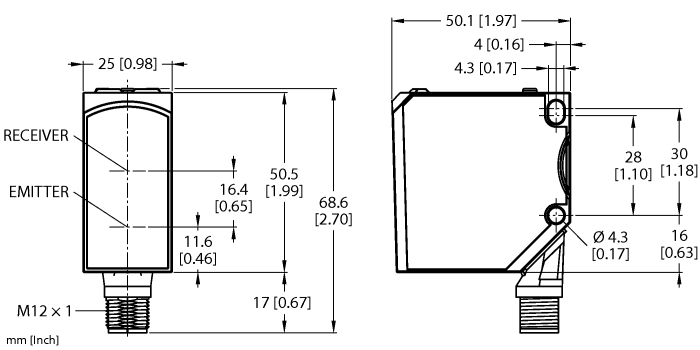

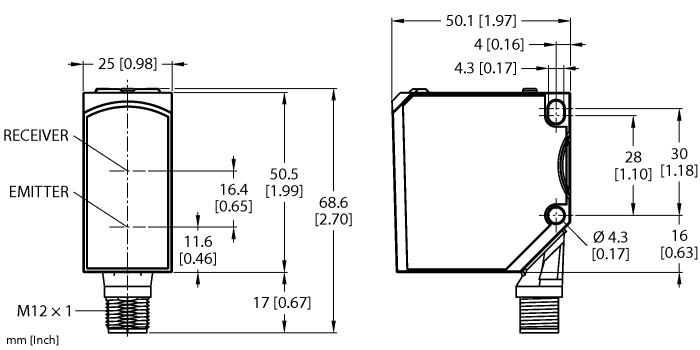

Construction size
50 x 25 x 50.5 mm
Key Features
Light type
White
Function
Inspection sensor
Output function
PNP/NPN
Max. range (mm)
150
In Stock
Price Group
F3
List Price
SEK 15,682.00
