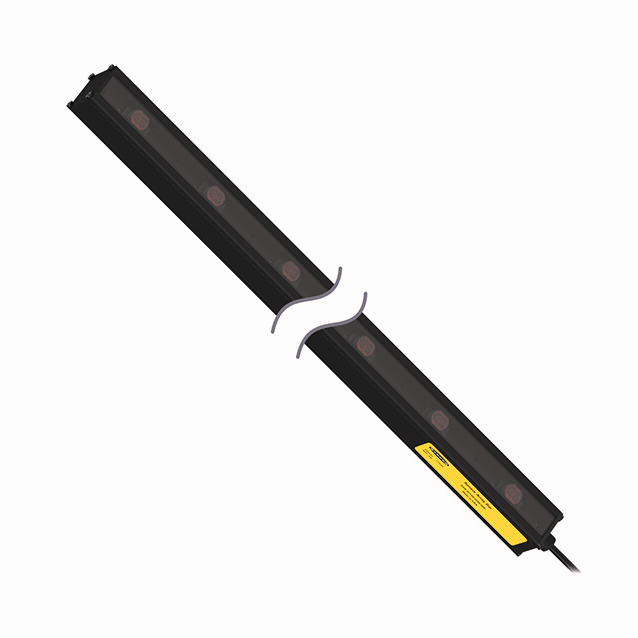

Photoelectric Sensor
SAB-998AB1DXL13-Q5E
Order ID no. 3805076
home
Home
Loading...
Technical Data
Protection class
IP50
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
55
Design
Rectangular
Electrical connection
Cable with connector
Switching element function
NO contact
Output function
PNP/NPN
Housing material
Anodized aluminium
Function
Diffuse mode sensor
Cable length (m)
0.15
Connector type
M12 × 1
Housing quality
AL

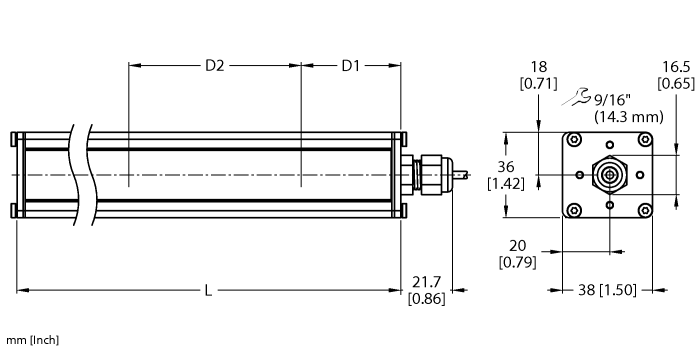

Construction size
38 x 36 x 998 mm
Max. range (mm)
762
Light type
IR
Scan field (mm)
998
Cascadable
No
Optical resolution (mm)
76.2
Number of beams
13
Key Features
Light type
IR
Output function
PNP/NPN
Function
Diffuse mode sensor
Max. range (mm)
762
home
Turck-Shop
Sensors
Photoelectric Sensors
SAB-998AB1DXL13-Q5E
In Stock
Price Group
F3
List Price
SEK 11,518.00
Item Total
SEK 11,518.00
Quantity
−
+
