Photoelectric Sensor
PD45VP6C200Q
Order ID no. 3048324
In Stock
Group
F3
List Price
SEK 8,732.00
Item Total
SEK 8,732.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Photoelectric Sensors
PD45VP6C200Q
Technical Data
Protection class
IP54
Switching element function
Complementary contact
Output function
PNP
Cable length (m)
0.15
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
Thermoplastic material
Ambient temperature min. (°C)
-10
Ambient temperature max. (°C)
45
Max. range (mm)
203
Function
Proximity switch
Focal distance (mm)
203
Light type
Red
Construction size

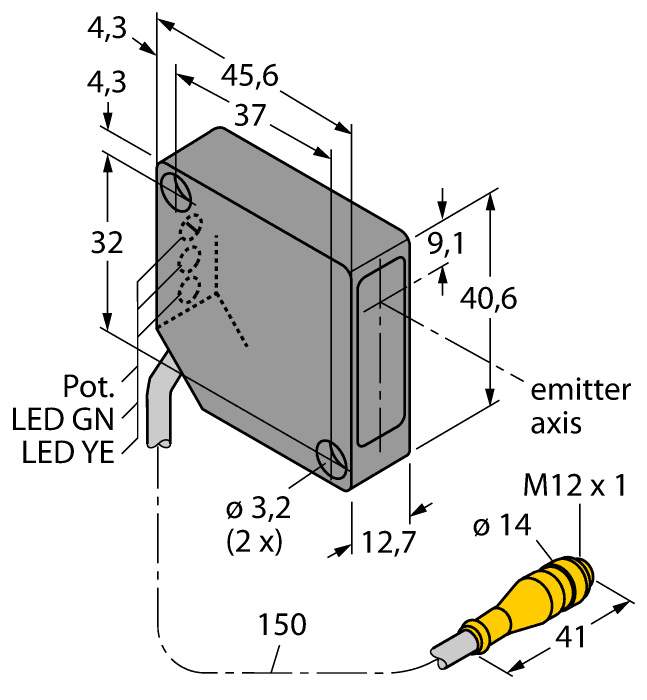

45.6 x 12.7 x 40.6 mm
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP
Max. range (mm)
203
