Magnetic Field Sensor

BIM-NST-AN6X-H1141/S34

Order ID no. 4685501

Protection class: IP67
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Design: Rectangular
Electrical connection: Connector
Operating voltage: DC
Switching element function: NO contact
Output function: NPN
Housing material: Plastic
Connector type: M12 × 1
Housing quality: PA12-GF30

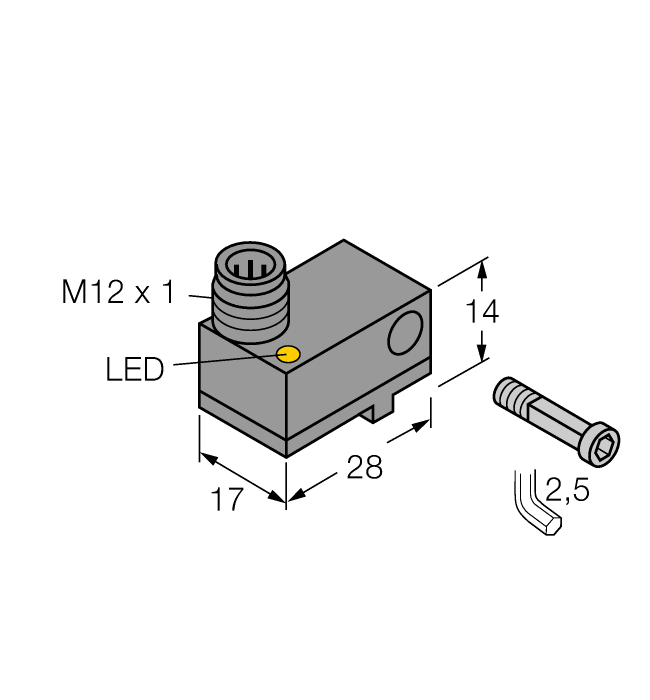

Construction size: 28 x 17 x 14 mm
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder

Electrical connection: Connector
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder
Output function: NPN
