WIM45-UNTL-LIU5X2-0.3-PSG4M | TURCK - Your Global Automation Partner
Linear Position Sensor
WIM45-UNTL-LIU5X2-0.3-PSG4M
Order ID no. 1536620
In Stock
Price Group
E1
List Price
SEK 3,399.00
home
Home
Loading...
Technical Data
Protection class
IP67
Output function
Analog output
Cable length (m)
0.3
Electrical connection
Cable with connector
Connector type
M8 × 1
Housing material
Plastic
Housing quality
PA12-GF30
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Measuring principle
Magnetic
Operating voltage
DC
Measuring range (mm)
45

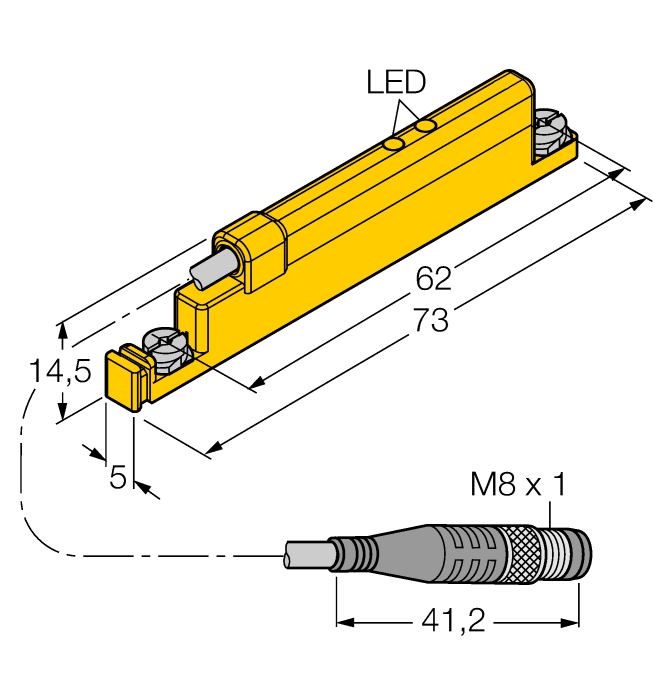

Construction size
73 x 5 x 14.5 mm
Measuring range
45…0.0 mm
Cylindrical design
T-groove cylinder
Key Features
Electrical connection
Cable with connector
Cylindrical design
T-groove cylinder
Output function
Analog output
