DW1000-110-PA-H1441 | TURCK - Your Global Automation Partner
Draw-Wire

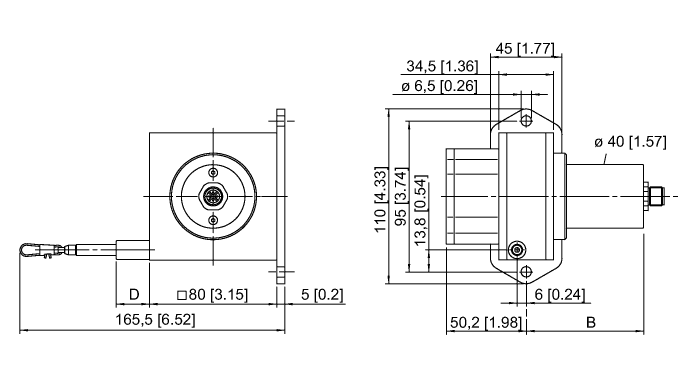

DW1000-110-PA-H1441
Order ID no. 1544542
In Stock
Price Group
B1
List Price
SEK 5,896.00
home
Home
Loading...
Technical Data
Protection class
IP65
Output function
Potentiometer
Design
Draw Wire
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Titanium anodized aluminium
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
85
Measuring principle
Potentiometer
Operating voltage
DC
Measuring range (mm)
1000
Measuring range
1000…0.0 mm
Key Features
Electrical connection
Connector
Measuring range (mm)
1000
Output function
Potentiometer
