FCST-A4-AP8X-H1141 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

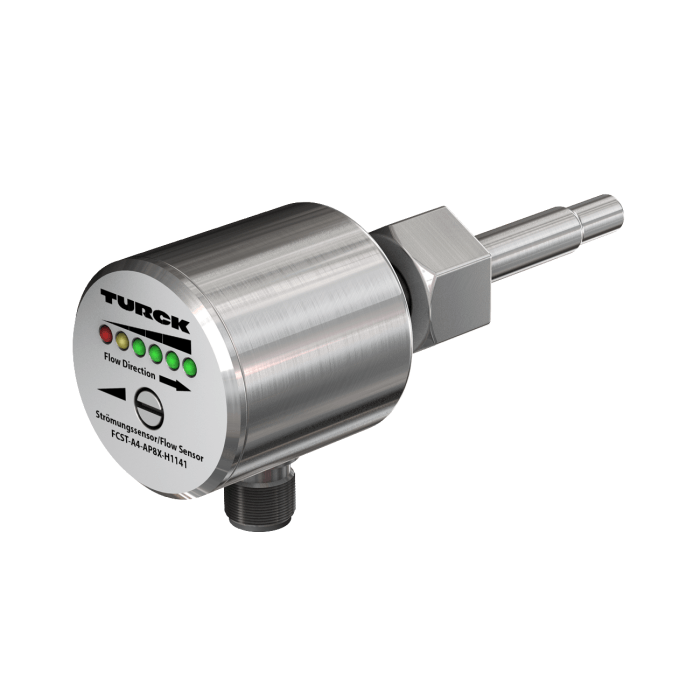

Freely Rotatable FCST Flow Sensor
FCST-A4-AP8X-H1141
Order ID no. 6870265
home
Home
Loading...
Technical Data
Protection class
IP67
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
80
Design
Immersion
Mounting conditions
Immersion sensor
Electrical connection
Connector
Operating voltage
DC
Switching element function
NO contact
Output function
PNP
Housing material
Stainless steel
Connector type
M12 × 1
Housing quality
1.4404 (AISI 316L)
Approvals
cULus
Detection type
Calorimetric
Medium
liquids
Process connection
M18 × 1.5 female thread
Media temperature min. (°C)
-20
Media temperature max. (°C)
80
Key Features
Process connection
M18 × 1.5 female thread
Output function
PNP
In Stock
Price Group
D2
List Price
SEK 4,600.00
