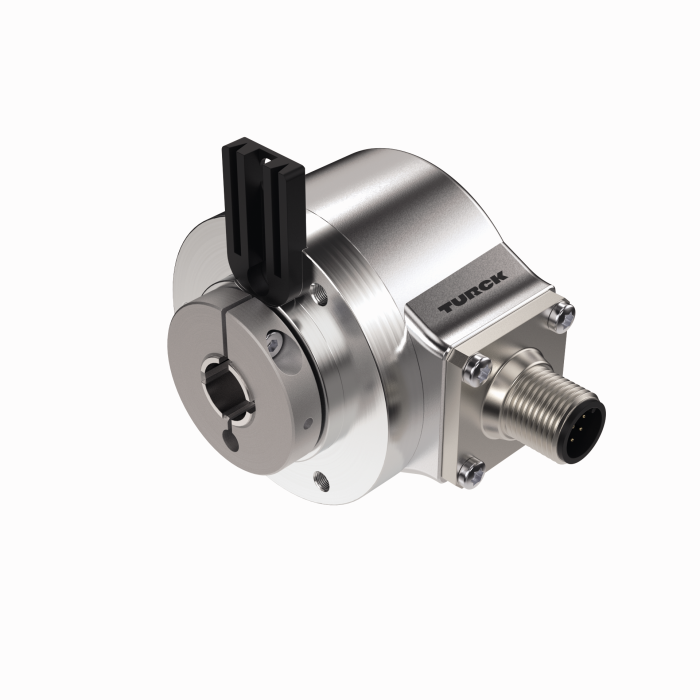

Incremental Encoder
REI-12HA4T-4B2048-H1181
Order ID no. 100010451
In Stock
List Price
SEK 3,609.00
home
Turck-Shop
Sensors
Encoders
REI-12HA4T-4B2048-H1181
Technical Data
Protection class
IP67
Output function
RS422/TTL
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Die-cast zinc
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
85
Measuring principle
Optical
Output type
Incremental
Shaft Type
Hollow shaft
Shaft diameter D (mm)
15.875
Flange diameter (mm)
50.8
Flange type
Flange with mounting element
Resolution incremental (ppr)
2048
Key Features
Output type
Incremental
Flange diameter (mm)
50.8
Shaft diameter D (mm)
15.875
Shaft Type
Hollow shaft
