BC5-QF5.5-AN6X2-1.5-PSG3M/S250 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Capacitive Sensor
BC5-QF5.5-AN6X2-1.5-PSG3M/S250
Order ID no. 26201202
In Stock
Price Group
D2
List Price
SEK 1,626.00
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
NPN
Cable length (m)
1.5
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M8 × 1
Housing material
Plastic
Housing quality
PP
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Measuring principle
Capacitive
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
5

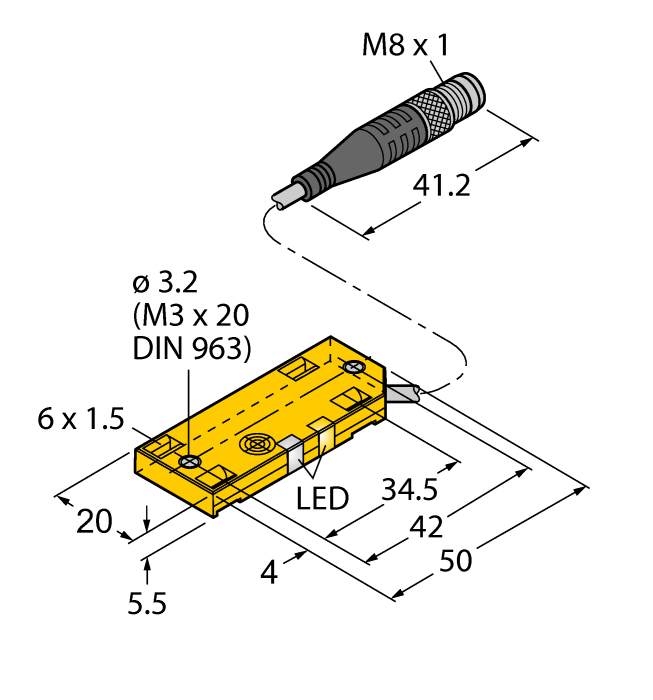

Construction size
54 x 20.3 x 5.5 mm
Key Features
Electrical connection
Cable with connector
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
5
