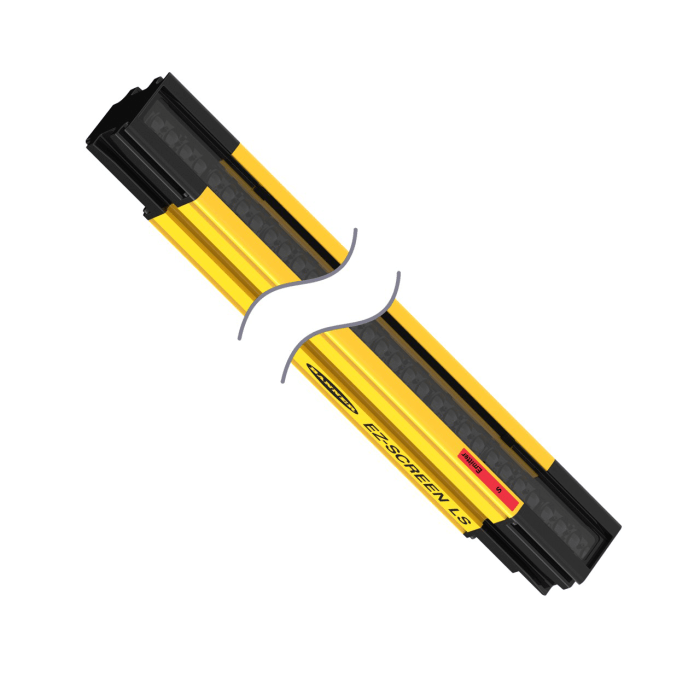

Safety Light Curtain
SLLR14-1610P8
Order ID no. 3089018
In Stock
Price Group
G1
List Price
SEK 30,380.00
home
Turck-Shop
Machine Safety
Safety Light Curtains
SLLR14-1610P8
Technical Data
Protection class
IP65, IP67
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
55
Design
Rectangular
Electrical connection
Cable with connector
Switching element function
2 x NO contact
Output function
2 × PNP
Housing material
Metal
Function
Light screen
Cable length (m)
0.3
Connector type
M12 × 1
Housing quality
AL
Max. range (mm)
12000
Light type
IR
Scan field (mm)
1610
Cascadable
No
Optical resolution (mm)
14
With muting function
No
Start/Restart interlock
no
Number of beams
184
Key Features
Cascadable
No
Scan field (mm)
1610
Optical resolution (mm)
14
Number of beams
184
