SLPR14-270P8 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

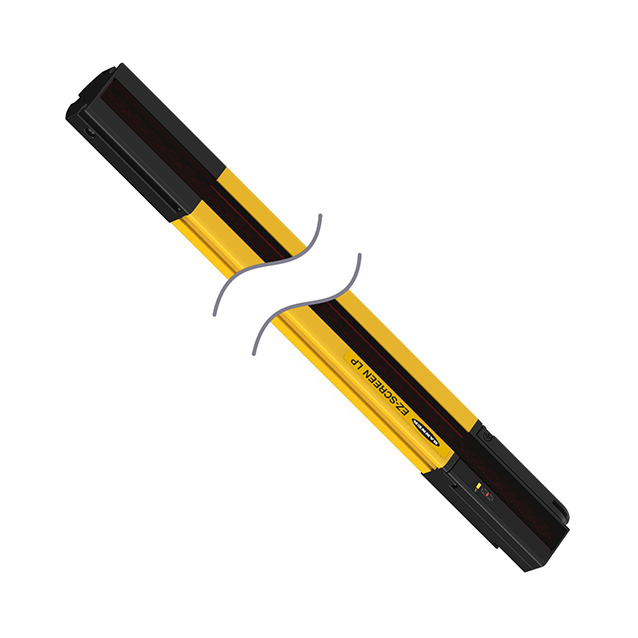

Safety Light Curtain
SLPR14-270P8
Order ID no. 3083552
home
Home
Loading...
Technical Data
Protection class
IP65
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
55
Design
Rectangular
Electrical connection
Cable with connector
Switching element function
2 x NC contact
Output function
2 × PNP
Housing material
Metal
Function
Light screen
Cable length (m)
0.3
Connector type
M12 × 1
Housing quality
AL

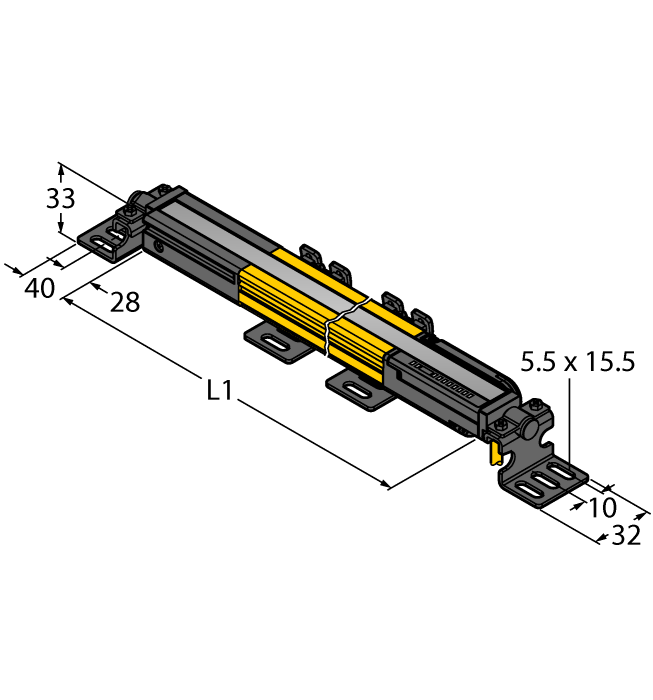

Construction size
26 x 28 x 270 mm
Max. range (mm)
7000
Scan field (mm)
270
Cascadable
No
Optical resolution (mm)
14
With muting function
No
Start/Restart interlock
adjustable
Number of beams
27
Key Features
Cascadable
No
Scan field (mm)
270
Optical resolution (mm)
14
Number of beams
27
In Stock
Price Group
G1
List Price
SEK 12,727.00
