LS2LP30-300Q88 | TURCK - Your Global Automation Partner
Safety Light Curtain
LS2LP30-300Q88
Order ID no. 3073565
home
Home
Loading...
Technical Data
Protection class
IP65
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
55
Design
Rectangular
Electrical connection
Connector
Switching element function
2 x NC contact
Output function
2 × PNP
Housing material
Metal
Function
Light screen
Connector type
M12 × 1
Housing quality
AL

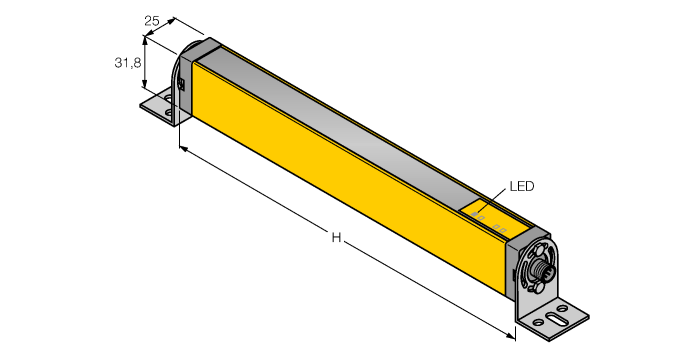

Construction size
31.8 x 25.2 x 365 mm
Max. range (mm)
15000
Light type
IR
Scan field (mm)
300
Cascadable
No
Optical resolution (mm)
30
With muting function
No
Start/Restart interlock
yes
Number of beams
16
Key Features
Cascadable
No
Scan field (mm)
300
Optical resolution (mm)
30
Number of beams
16
In Stock
Price Group
G1
List Price
SEK 13,388.00
