PVL500NQ | TURCK - Your Global Automation Partner
Pick-to-Light
PVL500NQ
Order ID no. 3032569
In Stock
Price Group
F3
List Price
SEK 6,370.00
home
Home
Loading...
Technical Data
Protection class
IP50
Switching element function
NO contact
Output function
NPN
Cable length (m)
2
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
Anodized AL
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
50
Max. range (mm)
1500
Function
Retroreflective Sensor
Operating voltage
DC
Input type
minus‐schaltend
Scan field (mm)
500
Optical resolution (mm)
70
Light type
Red

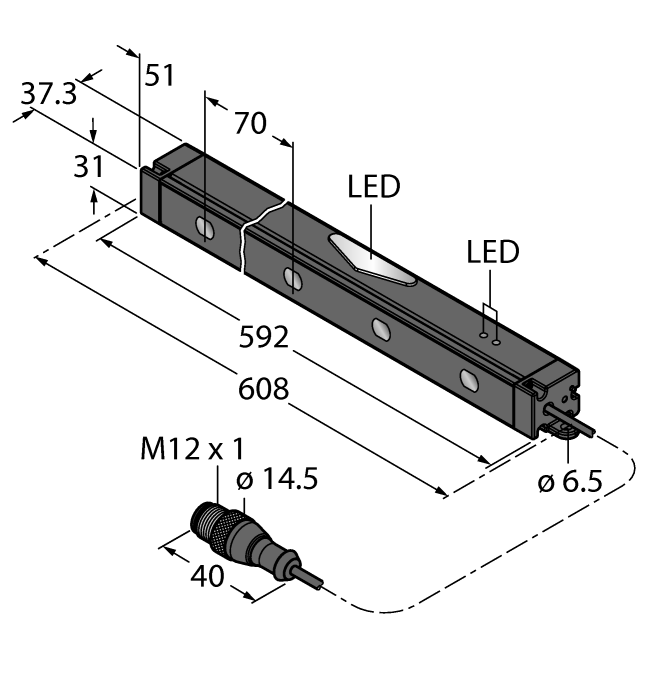

Construction size
608 x 31 x 37.3 mm
Number of colors/segments
2
Number of beams
8
Key Features
Scan field (mm)
500
Light type
Red
Output function
NPN
Number of colors/segments
2
