excom I/O System

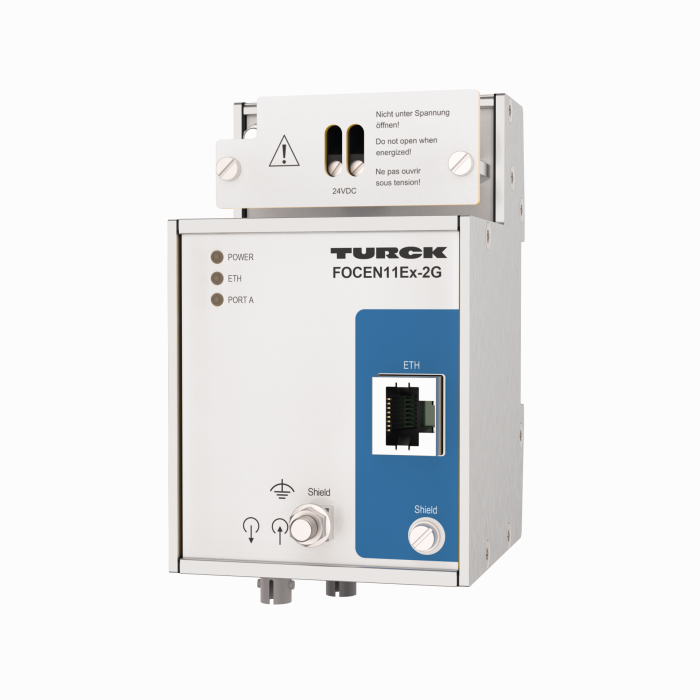

FOCEN11Ex-2G

Order ID no. 100000555

Protection class: IP20
Network protocol: EtherNet/IP, PROFINET, Modbus TCP
Approvals: ATEX, IECEx
Electrical connection: 1 × Ex e terminal, 2-pin, screw connection, 2 × BFOC/2.5 (St) male connector
Housing material: Anodized aluminium
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 70
Number of channels: 1
Connection technology signal: RJ45
