RSSD-PSGS4M-4414-0.5M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

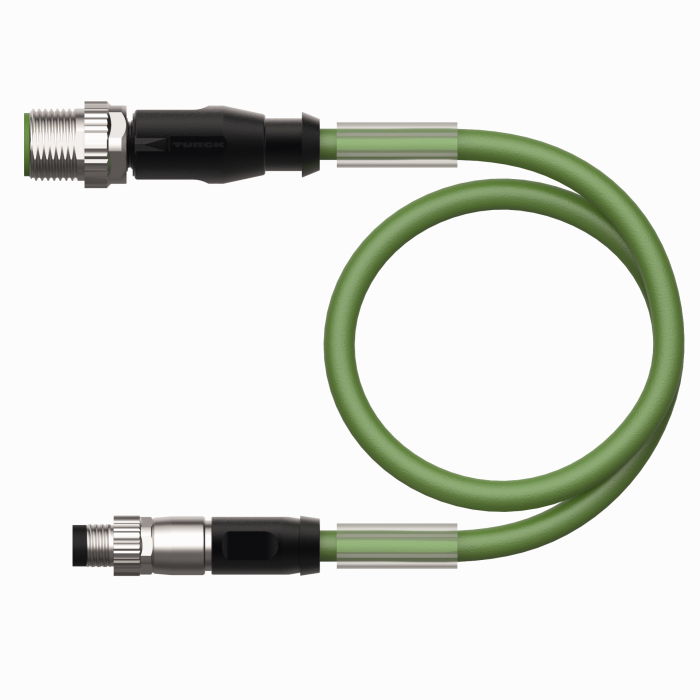

Industrial Ethernet Cable
RSSD-PSGS4M-4414-0.5M
Order ID no. 6933771
In Stock
Price Group
K2
List Price
SEK 348.00
home
Home
Loading...
Technical Data
Network protocol
Ethernet
Cable length (m)
0.5
Application
Data
Design
Extension Cable
Connector A
Male, M12 × 1, Straight, D-coded
Number of pins
4
Coupling nut/screw material A
Brass
Connector B
Male, M8 × 1, Straight
Number of Pins
4
Coupling nut/screw material B
Die-cast Zinc
Voltage (V)
42
Current (A)
3
Cable quality
PUR
Cable color
Green
Approvals
cULus
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
80
Core cross-section (mm²)
0.15
Number of Conductors
4
Key Features
Cable length (m)
0.5
Cable quality
PUR
Connector A
Male, M12 × 1, Straight, D-coded
Connector B
Male, M8 × 1, Straight
