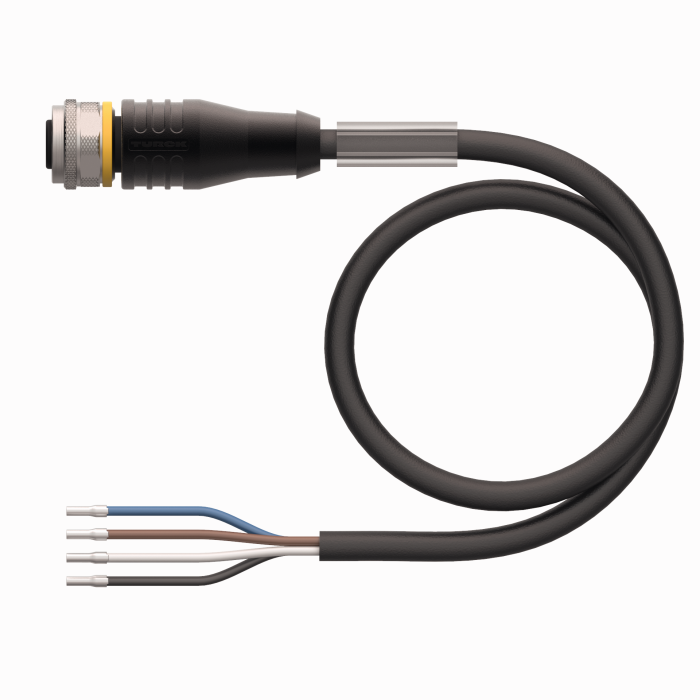

Actuator and Sensor Cable, PUR

RKS4.4T-70/TXL

Order ID no. 6637309

Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Cable length (m): 70
Application: Signal
Voltage: 250
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Number of pins: 4
Coupling nut/screw material A: Brass
Current (A): 4
Cable quality: PUR
Cable color: Black
Design: Connection Cable
Connector A: Female, M12 × 1, Straight, A-coded
Core cross-section (mm²): 0.34
Number of Conductors: 4
