Industrial Ethernet Cable

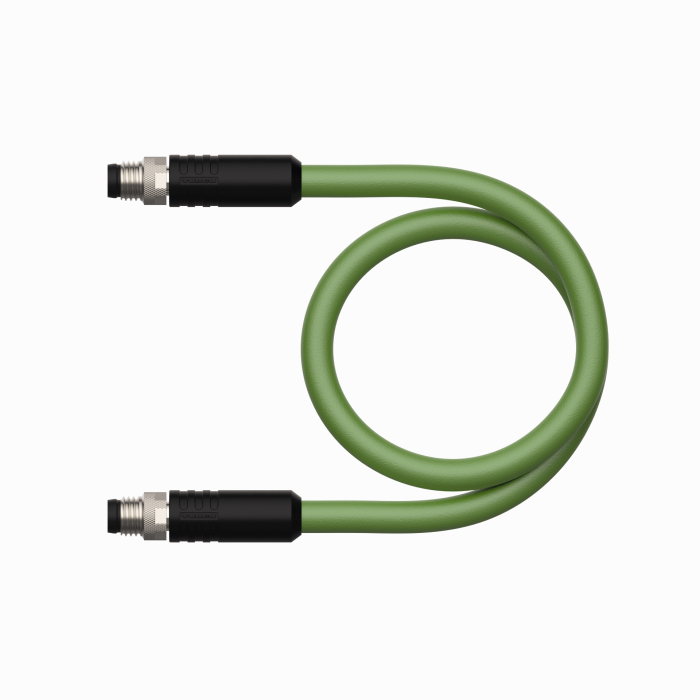

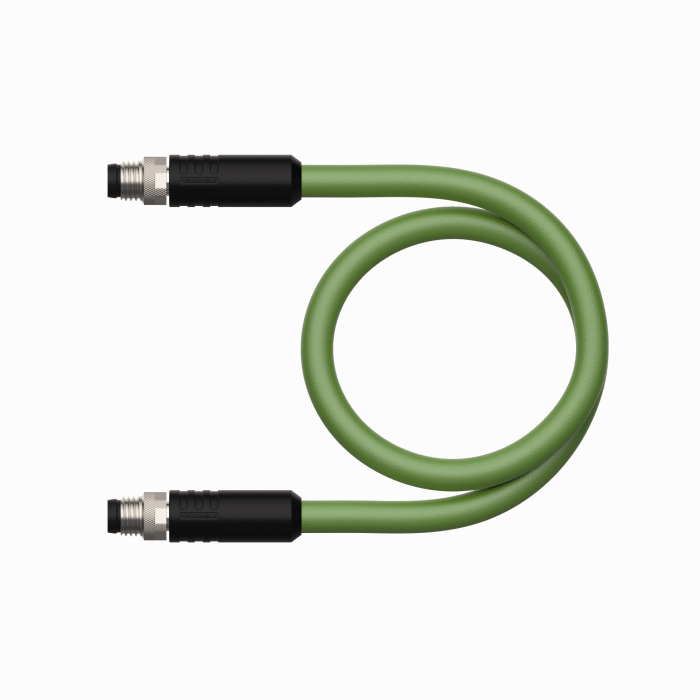

PSGS4M-PSGS4M-4422-0.12M
Order ID no. 6636231
home
Home
Loading...
Technical Data
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
80
Cable length (m)
0.12
Network protocol
Ethernet
Application
Data
Voltage
30
Approvals
UL Listed
Number of pins
4
Coupling nut/screw material A
Zinc
Number of Pins
4
Coupling nut/screw material B
Die-cast Zinc
Current (A)
4
Cable quality
PUR
Cable color
Green
Design
Extension Cable
Connector A
Male, M8 × 1, Straight
Connector B
Male, M8 × 1, Straight
Core cross-section (mm²)
0.32
Number of Conductors
4
Key Features
Cable length (m)
0.12
Cable quality
PUR
Connector A
Male, M8 × 1, Straight
Connector B
Male, M8 × 1, Straight
In Stock
Price Group
K2
List Price
SEK 247.00
