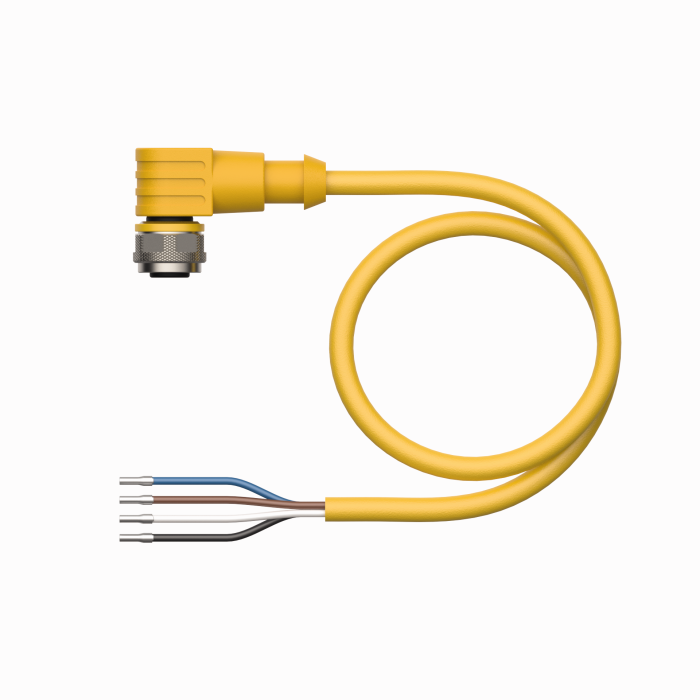

Actuator and Sensor Cable, PUR

WKC4.5T-25/TXY6713

Order ID no. 6633945

Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Cable length (m): 25
Application: Signal
Voltage: 60
Special features: AIDA, Resistant to welding sparks, Suitable for drag chain use
Approvals: cULus
Number of pins: 5
Coupling nut/screw material A: Brass
Current (A): 4
Cable quality: PUR
Cable color: Yellow
Design: Connection Cable
Connector A: Female, M12 × 1, Angled, A-coded
Core cross-section (mm²): 0.34
Number of Conductors: 5
