PKGC3M-5-PSGC3M/TXL1001 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Weld-Splatter Resistant Actuator and Sensor Cable
PKGC3M-5-PSGC3M/TXL1001
Order ID no. 6631112
In Stock
List Price
SEK 355.00
home
Home
Loading...
Technical Data

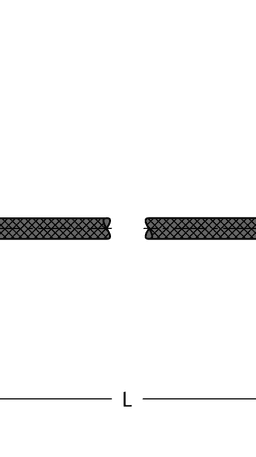

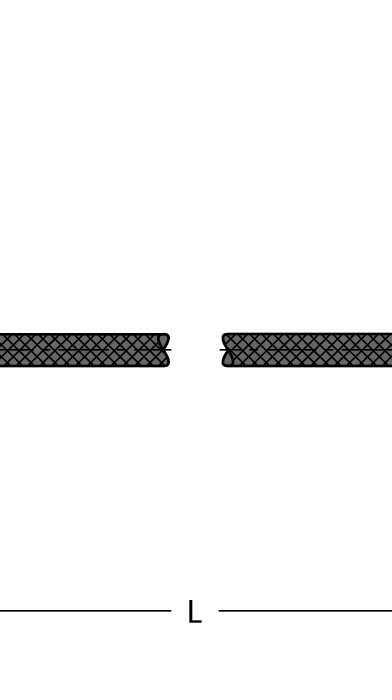

Cable length (m)
5
Application
Signal
Design
Extension Cable

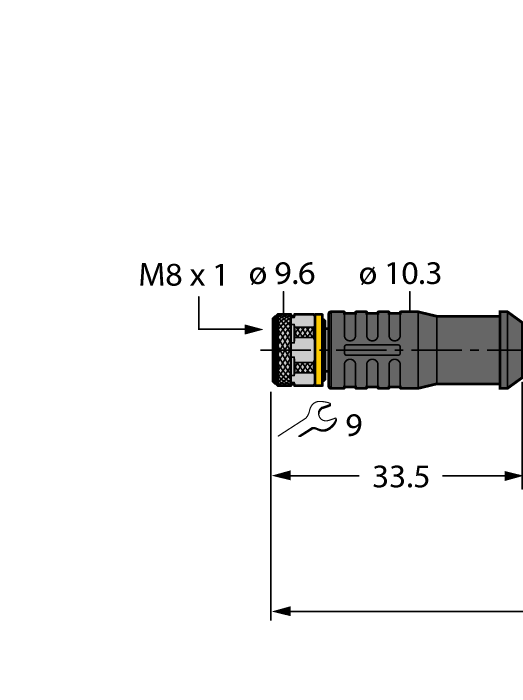

Connector A
Female, M8 × 1, Straight
Number of pins
3
Coupling nut/screw material A
Brass

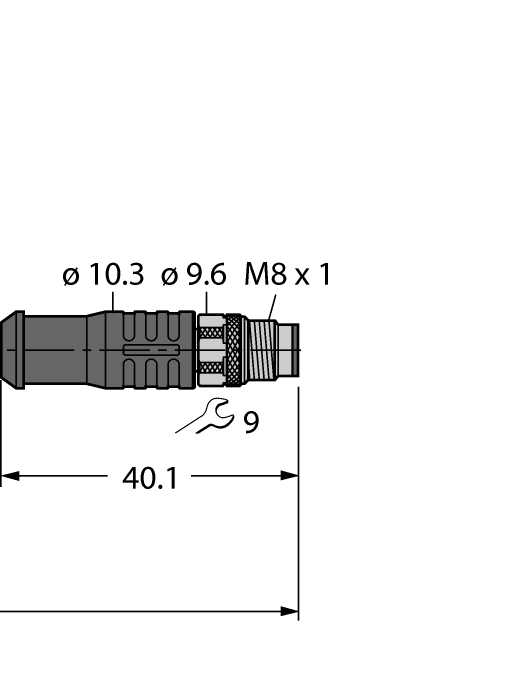

Connector B
Male, M8 × 1, Straight
Number of Pins
3
Coupling nut/screw material B
Brass
Current (A)
4
Cable quality
PUR
Cable color
Yellow
Special features
Resistant to welding sparks
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
90
Core cross-section (mm²)
0.34
Number of Conductors
3
Key Features
Cable length (m)
5
Cable quality
PUR
Connector A
Female, M8 × 1, Straight
Connector B
Male, M8 × 1, Straight
