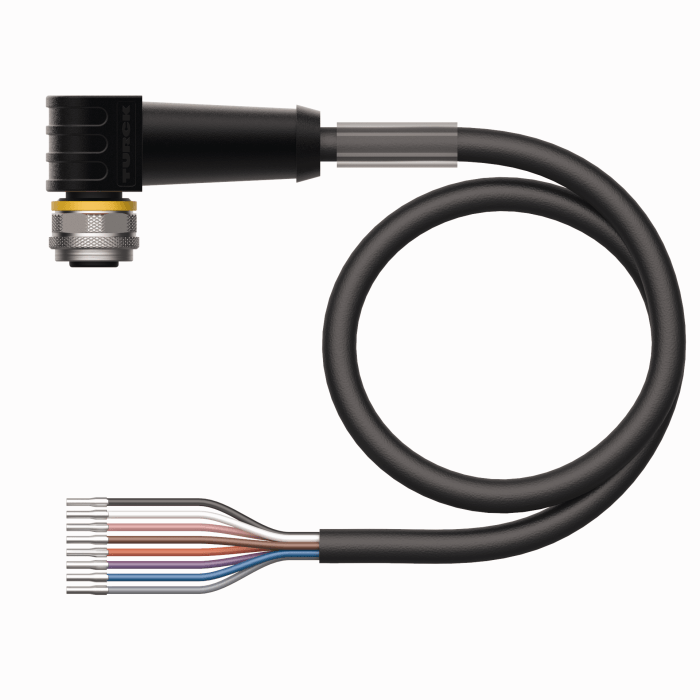

Actuator and Sensor Cable, PUR

WKS8T-2/TXL

Order ID no. 6625461

Cable length (m): 2
Application: Signal
Design: Connection Cable
Connector A: Female, M12 × 1, Angled, A-coded
Number of pins: 8
Coupling nut/screw material A: Brass
Voltage (V): 30
Current (A): 2
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Core cross-section (mm²): 0.25
Number of Conductors: 8
