RSS-RSS-8814-2M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

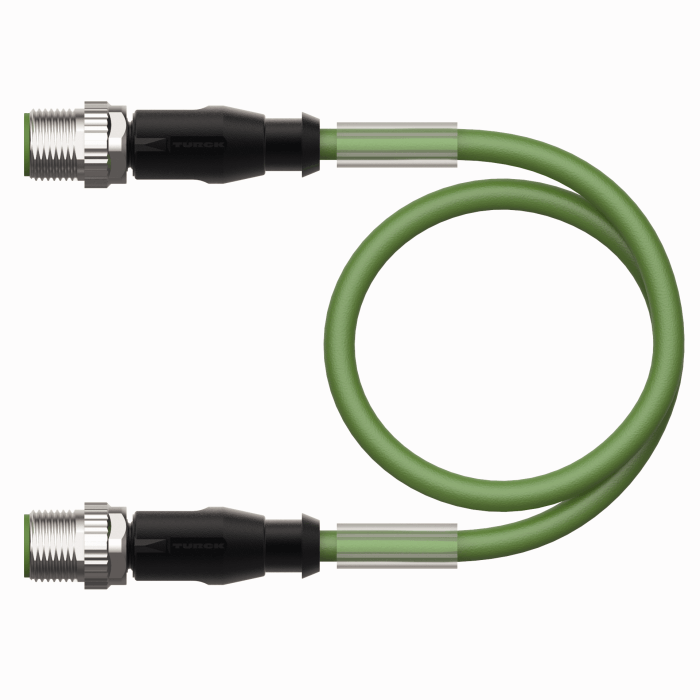

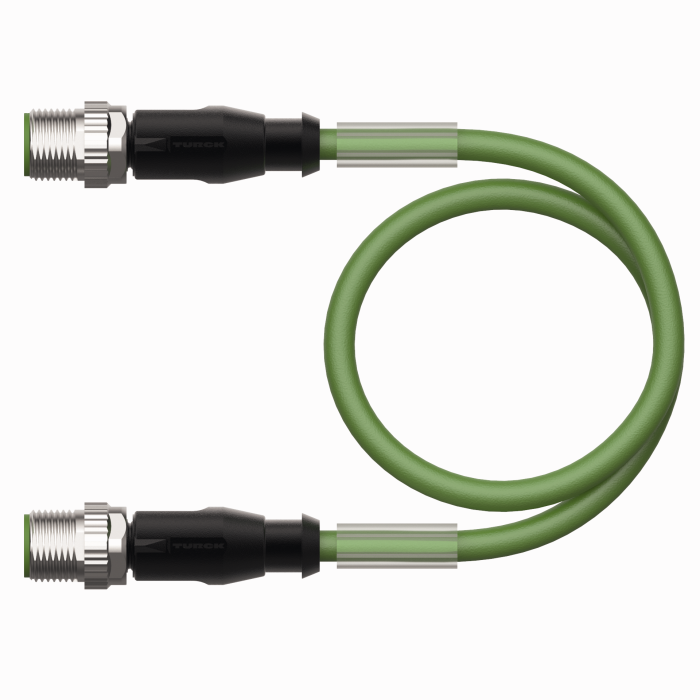

Industrial Ethernet Cable
RSS-RSS-8814-2M
Order ID no. 100024269
home
Home
Loading...
Technical Data
Network protocol
Ethernet
Cable length (m)
2
Application
Data
Design
Extension Cable
Connector A
Male, M12 × 1, Straight, A-coded
Number of pins
8
Coupling nut/screw material A
Brass
Connector B
Male, M12 × 1, Straight, A-coded
Number of Pins
8
Coupling nut/screw material B
Brass
Cable quality
PUR
Cable color
Green
Approvals
cULus
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
80
Core cross-section (mm²)
0.14
Number of Conductors
8
Key Features
Cable length (m)
2
Cable quality
PUR
Connector A
Male, M12 × 1, Straight, A-coded
Connector B
Male, M12 × 1, Straight, A-coded
home
Turck-Shop
Connectivity
Cordsets
RSS-RSS-8814-2M
In Stock
List Price
SEK 661.00
Item Total
SEK 661.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
