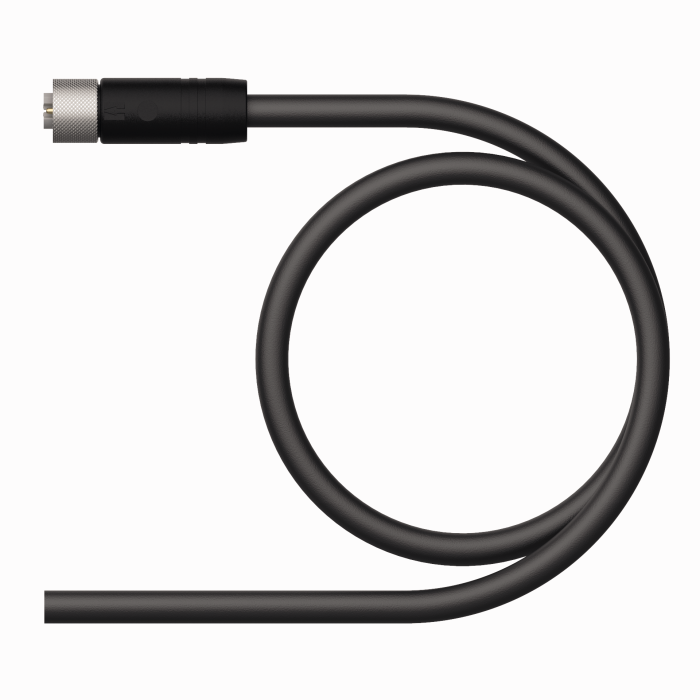

Supply Cable - M12 Power

RKS46PTB-5/TXL

Order ID no. 100024005

Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 80
Cable length (m): 5
Application: Power
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Number of pins: 4
Coupling nut/screw material A: Brass
Current (A): 16
Cable quality: PUR
Cable color: Black
Design: Connection Cable
Connector A: Female, M12 × 1, Straight, T-coded
Core cross-section (mm²): 1.5
Number of Conductors: 4
